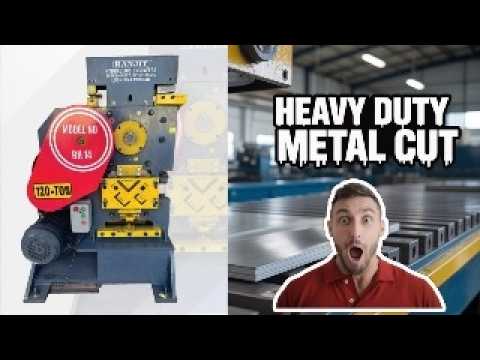

Ironworker Machine

Product Details:

MODEL    RH-14B
Ton        120 TON

Mold stroke 36MM

Stamping speed 25 time/min

Total power 5.5KW

Weight 1300KG

Form factor 740*1180+1550mm

Package size 830*1250*1680mm

Cut corner steel MAX 150+150+14mm

Grooved steel MAX 20#

Cut flat steel MAX 330+14mm

Punching thickness MAX 14mm

Cut round bars MAX 40mm

Product Details:

Specification:-
Channel 100mm* 50 mm
Channel 75mm*40mm
Round Bar 50mm
Plate Shear 400mm*20mm
Angle 110mm*110mm
Punch Dia Meter 25mm
Plate Thickness 20mm
Sheet Bending 12mm* 600mm Lenght

Product Details:

The multifunctional combination punching and shearing machine is a new type of shearing and punching equipment widely used in the market. The device is a foot switch, which is flexible and safe to operate. This product is novel, easy to operate, has a wide range of applications, has reasonable design, beautiful appearance, compact structure, stable performance, small size, light weight, multi-purpose machine, flexible operation, and easy use and maintenance. This machine is suitable for punching and shearing cold round steel, angle steel, channel steel, square steel, flat steel, steel plates, I-beams, H-beams, and C-beams with a tensile strength of less than 450MPa. It is currently an ideal multi-functional manual shearing machine. It can also perform special-shaped processing on angle steel, channel steel, etc., and can also cut and punch plate materials. Widely used in shearing, punching and die-cutting of plates and profiles. Mechanical processing, construction, electric power, shipbuilding, automobiles, railways, etc.
